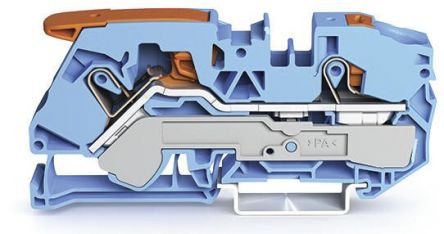

2-conductor through terminal block blue; [2116-5204]; 184-9802
by Wago
0₫
Mã kho: 1849802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 2116 |
| Wire Size | 14 → 6 AWG, 20 → 4 AWG, 20 → 6 AWG |
| Cable CSA | 0.5 → 16 mm², 0.5 → 25 mm², 2.5 → 16 mm² |
| Colour | Blue |
| Current Rating | 90A |
| Number of Levels | 1 |
| Termination Method | Cage Clamp |
| Voltage Rating | 800 V |
| Pitch | 12mm |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +105°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards Met | CCA, CSA, CURus, Ex, IECEx, KEMA/KEUR |
