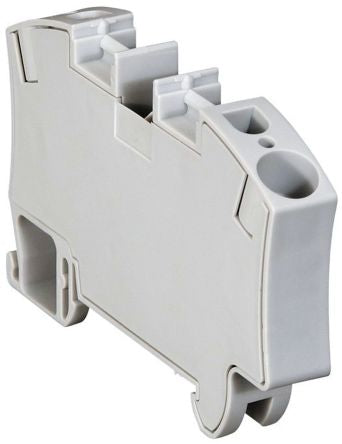

Legrand, 372 Series , 600 (CSA) V, 600 (UL) V, 800 (IEC) V Feed Through Terminal Block, Spring Termination [0 372 63]; 818-0334
by Legrand
0₫
Mã kho: 8180334
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 372 |
| Wire Size | 8 AWG |
| Cable CSA | 10mm² |
| Colour | Grey |
| Current Rating | 50 (CSA) A, 50 (UL) A, 57 (IEC) A, 63 (Ie) A |
| Termination Method | Spring |
| Voltage Rating | 600 (CSA) V, 600 (UL) V, 800 (IEC) V |
| Pitch | 10mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +55°C |
