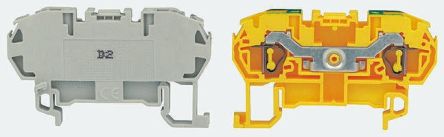

Entrelec Fused DIN Rail Terminal, D Series, 2.5 (stranded) mm², 4 (solid) mm², 630 V, 6.3A, 5 x 20 mm, 5 x 25 mm Fuse [1SNA290094R2100]; 533-6483
by Entrelec
0₫
Mã kho: 5336483
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | D |
| Wire Size | 12 AWG |
| Cable CSA | 2.5 (stranded) mm², 4 (solid) mm² |
| Colour | Grey |
| Current Rating | 6.3A |
| Number of Levels | Double |
| Termination Method | Spring Clamp |
| Voltage Rating | 630 V |
| Pitch | 8mm |
| Maximum Operating Temperature | +110°C |
