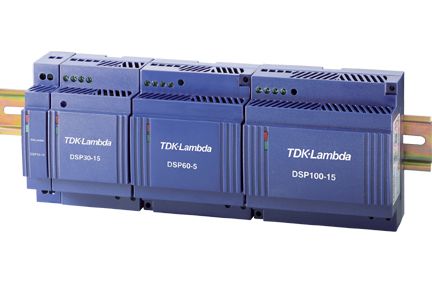

TDK-Lambda, DSP DIN Rail Power Supply, 15V dc Output Voltage, 4A Output Current [DSP-60-15]; 168-2952
by TDK-Lambda
0₫
Mã kho: 1682952
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 90 → 264V ac |
Output Voltage | 15 V dc |
Output Current | 0.166666666666667 |
Power Rating | 60W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 91mm |
Width | 71mm |
Depth | 55.6mm |
Minimum Temperature | -25°C |
Ripple And Noise | 50mV |
Mounting Type | DIN Rail Mount |
Maximum Temperature | +71°C |
Standards Met | CE, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 1310 Class 2, UL 508, UL 60950-1, UL 94 V-0 |
Series | DSP |
Load Regulation | 0.01 |
Output Voltage Adjustment Range | 13.5 → 16.5V |
