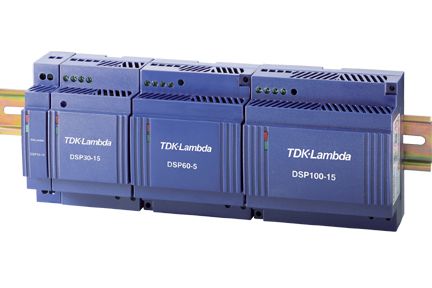

TDK-Lambda, DSP DIN Rail Power Supply, 15V dc Output Voltage, 2A Output Current [DSP-30-15]; 168-2951
by TDK-Lambda
0₫
Mã kho: 1682951
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 90 → 264V ac |
| Output Voltage | 15 V dc |
| Output Current | 0.0833333333333333 |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 91mm |
| Width | 53mm |
| Ripple And Noise | 50mV |
| Depth | 55.6mm |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25°C |
| Load Regulation | 0.01 |
| Output Voltage Adjustment Range | 13.5 → 16.5V |
| Standards Met | CE, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 1310 Class 2, UL 508, UL 60950-1, UL 94 V-0 |
| Series | DSP |
| Maximum Temperature | +71°C |
