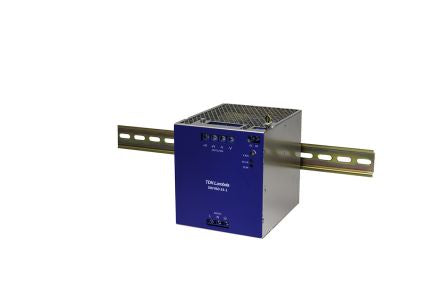

TDK-Lambda, DRF DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 40A Output Current [DRF-960-24-1]; 186-0209
by TDK-Lambda
0₫
Mã kho: 1860209
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 180 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 40 A |
| Power Rating | 960W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Power Supply |
| Height | 123.4mm |
| Width | 110mm |
| Output Voltage Adjustment Range | 24 → 28V |
| Minimum Temperature | -40°C |
| Efficiency | 0.95 |
| Standards Met | CE, CISPR22-B, EN55032-B, EN61000-4-2, IEC/EN/UL60950-1, UL508 Listed |
| Maximum Temperature | +70°C |
| Ripple And Noise | <240mV |
| Mounting Type | DIN Rail Mount |
| Series | DRF |
| Depth | 139mm |
| Load Regulation | <240mV |
| Hazardous Area Certification | Yes |
