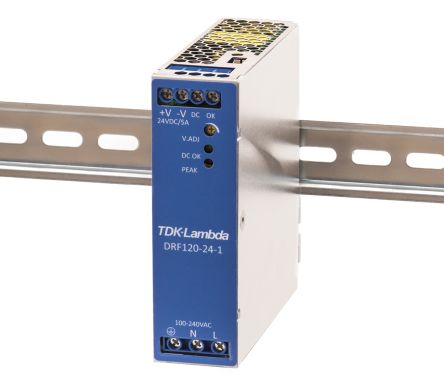

TDK-Lambda, DRF DIN Rail Power Supply, 24V dc Output Voltage, 5A Output Current [DRF-120-24-1]; 905-9806
by TDK-Lambda
0₫
Mã kho: 9059806
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 123.4mm |
| Width | 115mm |
| Depth | 115.4mm |
| Output Voltage Adjustment Range | 24 → 28V |
| Minimum Temperature | -25°C |
| Ripple And Noise | <240mV |
| Special Features | ErP Referenced Design, Remote On/Off, Remote Programming, Ultra Compact Footprint |
| Mounting Type | DIN Rail Mount |
| Series | DRF |
| Maximum Temperature | +70°C |
| Hazardous Area Certification | IECEx |
| Standards Met | ATEX, CE, CISPR22-B, EN 55022 Class B, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN/IEC/UL 60950-1, GL, IEC Ex, UL 508 |
