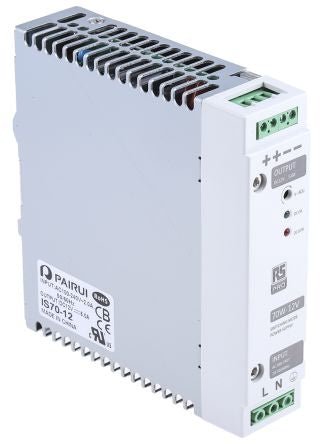

RS PRO DIN Rail Power Supply, 12V dc Output Voltage, 5A Output Current; 136-8312
by RS PRO
0₫
Mã kho: 1368312
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 12 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 70W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 130mm |
| Width | 33mm |
| Ripple And Noise | 100mV |
| Minimum Temperature | -25°C |
| Depth | 125mm |
| Mounting Type | DIN Rail, Vertical Mount |
| Output Voltage Adjustment Range | 11 → 14V |
| MTBF | 200kh |
| Maximum Temperature | +70°C |
| Special Features | Compact Size, Cooling by Free Air Convection, LED Indicator for DC Low, LED Indicator for DC Power On, 3-Years Warranty, 100% Full Load Burn-In Test |
| Standards Met | CB, CE, CUL, CULus Recognised, FCC, UL |
| Load Regulation | 0.03 |
