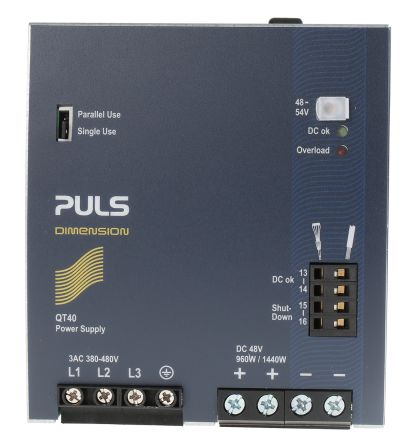

PULS, DIMENSION Q DIN Rail Panel Mount Power Supply, 48V dc Output Voltage, 20A Output Current [QT40.481]; 711-5988
by PULS
0₫
Mã kho: 7115988
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 323 → 576 V ac, 450 → 800 V dc |
Output Voltage | 48 V dc |
Output Current | 20 A |
Power Rating | 960W |
Electrical Phase | 3 |
Type | Switch Mode |
Width | 110mm |
Ripple And Noise | 150mV Pk-Pk |
Depth | 127mm |
MTBF | 685000h |
Load Regulation | 50mV |
Minimum Temperature | -25°C |
Maximum Temperature | +70°C |
Series | DIMENSION Q |
