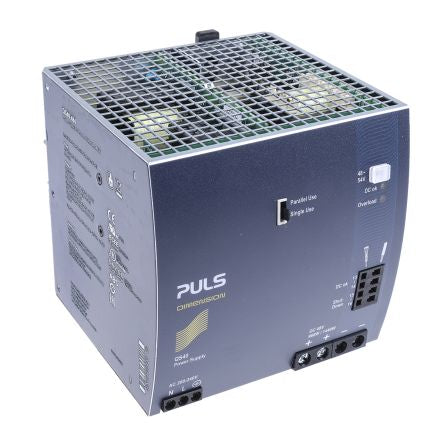

PULS, DIMENSION Q DIN Rail Panel Mount Power Supply, 48V dc Output Voltage, 20A Output Current [QS40.484]; 753-1964
by PULS
0₫
Mã kho: 7531964
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 100 → 240V ac |
| Output Voltage | 48 V dc |
| Output Current | 20 A |
| Power Rating | 960W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 124mm |
| Width | 125mm |
| Depth | 127mm |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25°C |
| MTBF | 693000h |
| Load Regulation | 50mV |
| Maximum Temperature | +70°C |
| Series | DIMENSION Q |
| Ripple And Noise | 150mV Pk-Pk |
