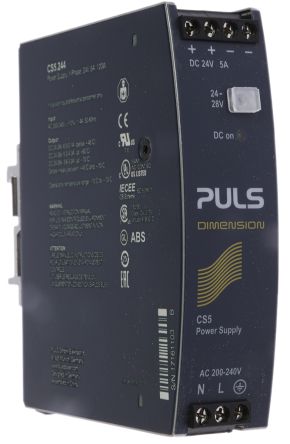

PULS, C DIN Rail Power Supply, 24V dc Output Voltage, 5A Output Current [CS5.244]; 124-1293
by PULS
0₫
Mã kho: 1241293
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 124mm |
| Width | 117mm |
| Depth | 117mm |
| Minimum Temperature | -10°C |
| Ripple And Noise | <50mV Pk-Pk |
| MTBF | 144000h |
| Output Voltage Adjustment Range | 24 → 28V |
| Load Regulation | 100mV |
| Special Features | Fuse Breaking |
| Series | C |
| Standards Met | ABS, CB Scheme, CCSAus, CE Certified, CISPR 11, CISPR 22 Class B, CULus Listed, CULus Recognised, EAC, EN 50178, EN 55011, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-3, EN 61000-6-4, EN/IEC 60529, FCC Part 15, GL, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60364-4-41, IEC 62103, IEC/CISPR 16-1-2, IEC/CISPR 16-2-1, IEC/EN 60204-1, IEC/EN 60950-1, MIL HDBK 217F, VDE 0160 |
| Maximum Temperature | +70°C |
| Mounting Type | DIN Rail |
