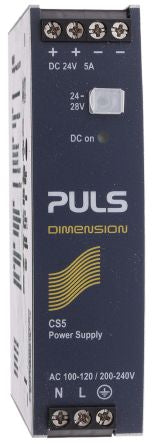

PULS, DIMENSION C-Line DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 5A Output Current [CS5.241]; 627-6174
by PULS
0₫
Mã kho: 6276174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 100 → 120V ac |
Output Voltage | 24 V dc |
Output Current | 0.208333333333333 |
Power Rating | 120W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 124mm |
Width | 32mm |
MTBF | 1495000h |
Series | DIMENSION C-Line |
Mounting Type | DIN Rail Mount |
Minimum Temperature | -25°C |
Depth | 117mm |
Maximum Temperature | +70°C |
Ripple And Noise | 50mV Pk-Pk |
Load Regulation | 100mV |
