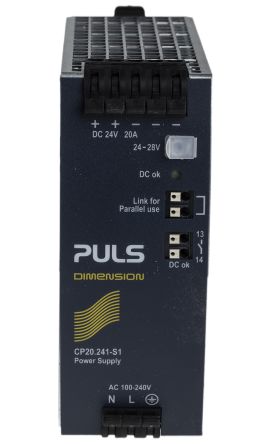

PULS, CP DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [CP20.241-S1]; 181-2492
by PULS
0₫
Mã kho: 1812492
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 100 → 240V ac |
Output Voltage | 24 V dc |
Output Current | 20 A |
Power Rating | 480W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Power Supply |
Height | 124mm |
Width | 48mm |
Load Regulation | 100mV |
Output Voltage Adjustment Range | 24 → 28V |
MTBF | 100h |
Ripple And Noise | 50mV Pk-Pk |
Efficiency | 0.956 |
Depth | 127mm |
Mounting Type | DIN Rail Mount |
Maximum Temperature | +70°C |
Special Features | Active Power Factor Correction (PFC) |
Minimum Temperature | -25°C |
Hazardous Area Certification | ATEX, IECEx |
Standards Met | ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, CULus Listed, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508, UL 60950-1 |
Series | CP |
