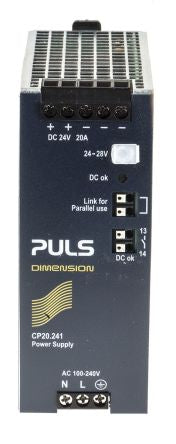

PULS, CP DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [CP20.241]; 165-1372
by PULS
0₫
Mã kho: 1651372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Output Voltage | Dc |
Input Voltage | 230V ac |
Output Voltage | 24 V dc |
Output Current | 20 A |
Power Rating | 480W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 124mm |
Width | 48mm |
Depth | 127mm |
Mounting Type | DIN Rail Mount |
Minimum Temperature | -25°C |
Hazardous Area Certification | ATEX, IECEx |
Standards Met | ATEX, CE, CSA, CULus Listed, CULus Recognized, GL, IECEx, UL 508, UL 60950-1 |
Series | CP |
Ripple And Noise | 50mV Pk-Pk |
Output Voltage Adjustment Range | 24 → 28V |
Special Features | Active Power Factor Correction, Excellent Partial Load Efficiency, Output Power Reserves, Safe Hiccup PLUS, Wide Range of Input 100 to 240 V ac |
Load Regulation | 100 mV, 1000 mV |
Maximum Temperature | +70°C |
MTBF | 1060000h |
