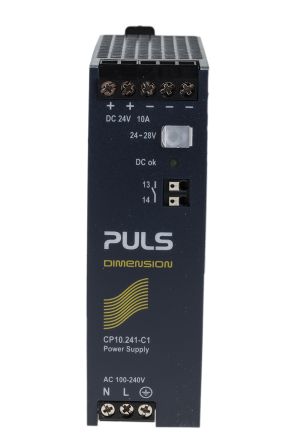

PULS, CP DIN Rail Power Supply, 24V dc Output Voltage, 10A Output Current [CP10.241-C1]; 181-2489
by PULS
0₫
Mã kho: 1812489
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 100 → 240V ac |
Output Voltage | 24 V dc |
Output Current | 0.416666666666667 |
Power Rating | 240W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Power Supply |
Height | 124mm |
Width | 39mm |
Depth | 117mm |
Mounting Type | DIN Rail Mount |
Output Voltage Adjustment Range | 24 → 28V |
MTBF | 100h |
Hazardous Area Certification | ATEX, IECEx |
Minimum Temperature | -25°C |
Efficiency | 0.952 |
Load Regulation | 50mV |
Special Features | Easy Fuse Breaking due to High Overload Peak Current |
Maximum Temperature | +70°C |
Standards Met | ANSI/ISA 12.12.01-2015, ATEX EN 60079-0, ATEX EN 60079-15, CE Certified, CRUus UL 60950-1, CSAus Certified, CULus Listed, GL Listed, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-15, UL 508 |
Ripple And Noise | 50mV Pk-Pk |
Series | CP |
