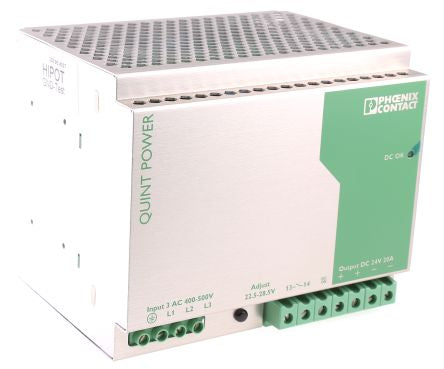

Phoenix Contact, QUINT-PS-3X400-500AC/24DC/20 PSU, 24V dc Output Voltage, 20A Output Current [2938727]; 505-5415
0₫
Mã kho: 5055415
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 400V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 2 |
| Electrical Phase | 3 |
| Type | Switch Mode |
| Height | 130mm |
| Width | 125mm |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
| Series | QUINT-PS-3X400-500AC/24DC/20 |
| Load Regulation | ±1% |
| MTBF | 500000h |
| Depth | 130mm |
| Efficiency | >91% |
| Ripple And Noise | 10mV Pk-Pk |
| Minimum Temperature | -25°C |
