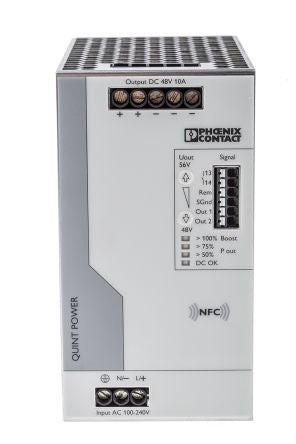

Phoenix Contact, QUINT4-PS/1AC/48DC/10 PSU, 48 → 56V dc Output Voltage, 10A Output Current [2904611]; 174-5885
0₫
Mã kho: 1745885
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 48 → 56V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 130mm |
| Width | 70mm |
| Mounting Type | DIN Rail Mount |
| MTBF | 317000 h @ 60 °C, 676000 h @ 40 °C, 1100000 h @25 °C |
| Maximum Temperature | +70°C |
| Ripple And Noise | 70mV Pk-Pk |
| Efficiency | 0.95 |
| Minimum Temperature | -25°C |
| Depth | 125mm |
| Series | QUINT4-PS/1AC/48DC/10 |
| Special Features | Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface |
| Hazardous Area Certification | Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D |
