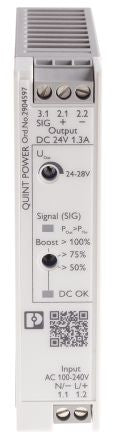

Phoenix Contact, QUINT4-PS/1AC/24DC/1.3/SC PSU, 24V dc Output Voltage, 1.3A Output Current [2904597]; 174-5878
0₫
Mã kho: 1745878
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 1.3 A |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 99mm |
| Width | 22.5mm |
| Mounting Type | DIN Rail Mount |
| Depth | 90mm |
| Minimum Temperature | -25°C |
| Series | QUINT4-PS/1AC/24DC/1.3/SC |
| Maximum Temperature | +70°C |
| MTBF | 486000 h @ 60 °C, 1107000 h @ 40 °C, 1904000 h @ 25 °C |
| Ripple And Noise | 40mV Pk-Pk |
| Special Features | Heavy Loads with Dynamic Boost, Monitoring Indicates Critical Operating States Before Errors Occur, Power Range of up to 100 W |
