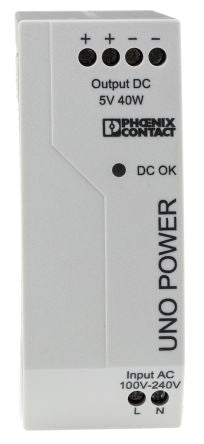

Phoenix Contact, UNO-PS/1AC/ 5DC/ 40W PSU, 5V dc Output Voltage, 8A Output Current [2904375]; 820-6708
0₫
Mã kho: 8206708
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 5 V dc |
| Output Current | 0.333333333333333 |
| Power Rating | 40W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 84mm |
| Load Regulation | < 3% |
| Series | UNO-PS/1AC/ 5DC/ 40W |
| Ripple And Noise | <100mV Pk-Pk |
| Efficiency | 0.85 |
| Minimum Temperature | -25°C |
| Depth | 90mm |
| Maximum Temperature | +70°C |
| MTBF | 1201000h |
| Mounting Type | DIN Rail Mount |
