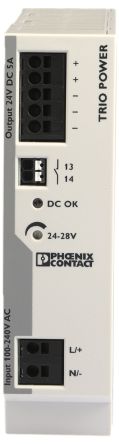

Phoenix Contact, TRIO-PS-2G/1AC/24DC/5 PSU, 24V dc Output Voltage, 5A Output Current [2903148]; 883-7352
0₫
Mã kho: 8837352
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 120W |
| Number of Outputs | 2 |
| Electrical Phase | 1 |
| Type | Switched Mode |
| Height | 130mm |
| Width | 35mm |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 50mV Pk-Pk |
| Minimum Temperature | -25°C |
| Depth | 115mm |
| MTBF | >3500000 h @ 25 °C |
| Series | TRIO-PS-2G/1AC/24DC/5 |
| Special Features | Features an Extremely Robust Electrical and Mechanical Design, The TRIO POWER Power Supply Range With Push-in Connection Has Been Perfected For Use in Machine Building |
| Maximum Temperature | +70°C |
| Standards Met | DIN VDE 0100-410, EN 50121-4, EN 50178, EN 60204-1, EN 60204-1 (PELV), EN 61000-3-2, IEC 60950-1 (SELV), IEC 60950-1/VDE 0805 (SELV), SEMI F47-0706, UL Listed UL 508, UL/C-UL Reconized UL 60950-1, VDE 0160 (PELV) |
