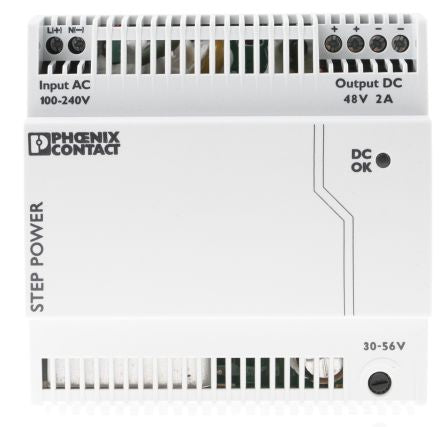

Phoenix Contact, STEP-PS/1AC/48DC/2 PSU, 48V dc Output Voltage, 2A Output Current [2868680]; 665-7804
0₫
Mã kho: 6657804
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 48 V dc |
| Output Current | 0.0833333333333333 |
| Power Rating | 96W |
| Number of Outputs | 2 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 61mm |
| Load Regulation | ±1% |
| MTBF | 500000h |
| Efficiency | >90% |
| Ripple And Noise | 30mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
| Depth | 90mm |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Series | STEP-PS/1AC/48DC/2 |
