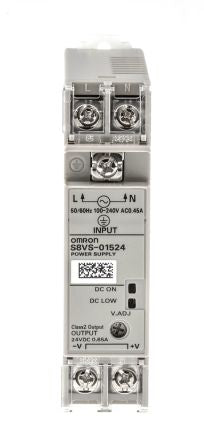

Omron, S8VS DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 650mA Output Current [S8VS01524]; 494-6528
by Omron
0₫
Mã kho: 4946528
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 650 mA |
| Power Rating | 15W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 85mm |
| Width | 22.5mm |
| MTBF | 135000h |
| Mounting Type | DIN Rail Mount |
| Series | S8VS |
| Ripple And Noise | ±2% |
| Load Regulation | ±2% |
| Maximum Temperature | +60°C |
| Efficiency | 0.77 |
| Minimum Temperature | -10°C |
| Depth | 96.4mm |
