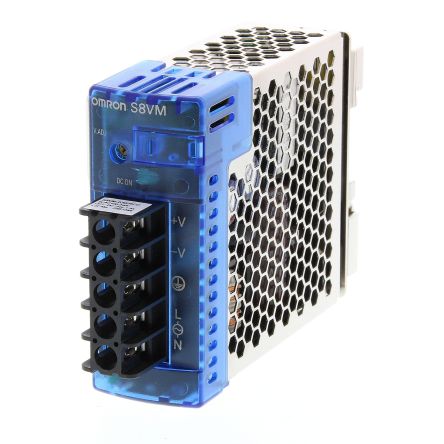

Omron, S8VM DIN Rail Panel Mount Power Supply, 15V dc Output Voltage, 2A Output Current [S8VM03015CD]; 110-340
by Omron
0₫
Mã kho: 110340
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 15 V dc |
| Output Current | 0.0833333333333333 |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 82.5mm |
| Width | 38.6mm |
| Ripple And Noise | ±1.2% |
| Efficiency | 0.79 |
| Mounting Type | DIN Rail Mount |
| Series | S8VM |
| Maximum Temperature | +50°C |
| Minimum Temperature | 0°C |
| MTBF | 135000h |
| Load Regulation | ±0.8% |
| Depth | 113.1mm |
