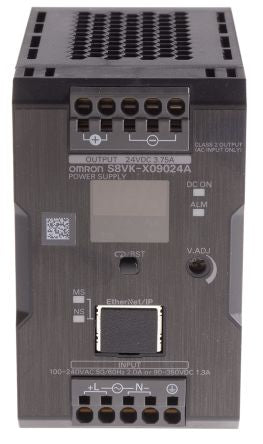

Omron, S8VK-X DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 3.75A Output Current [S8VK-X09024-EIP]; 174-5842
by Omron
0₫
Mã kho: 1745842
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 3.75 A |
| Power Rating | 90W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 55mm |
| Maximum Temperature | +70°C |
| Special Features | And more are Acquired on the Network and can be Managed all at Once, Output Current, Output Voltage, Power Boost Function at 150%, Replacement Time, Status Can be Checked On-Site Using the Indication Monitor |
| Series | S8VK-X |
| Output Voltage Adjustment Range | 23 → 24.1V |
| Standards Met | CE, CULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL |
| Depth | 92mm |
| Minimum Temperature | -40°C |
| Mounting Type | DIN Rail Mount |
| Efficiency | 0.87 |
| Ripple And Noise | 300mV Pk-Pk |
| Load Regulation | 0.015 |
| MTBF | 150000h |
