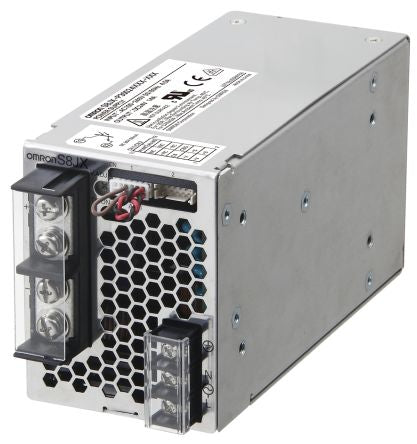

Omron, S8JX-P DIN Rail Power Supply, 24V dc Output Voltage, 16.5A Output Current [S8JX-P30024CD]; 184-9500
by Omron
0₫
Mã kho: 1849500
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 100 → 240V ac |
| Output Voltage | 24 V dc |
| Output Current | 16.5 A |
| Power Rating | 300W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 123mm |
| Width | 77.6mm |
| Ripple And Noise | 0.02 |
| Minimum Temperature | -20°C |
| Depth | 249mm |
| Series | S8JX-P |
| Maximum Temperature | +80°C |
| Efficiency | 79 (Typ.)% |
| Special Features | Alarm Detection Function, Conforms to EMI EN55011 Class B, Limits for Harmonic Current Emissions, Remote Control Function, Remote Sensing Function |
| Load Regulation | 0.008 |
| Output Voltage Adjustment Range | -10 → +15% |
| MTBF | 160000h |
| Mounting Type | DIN Rail Mount |
