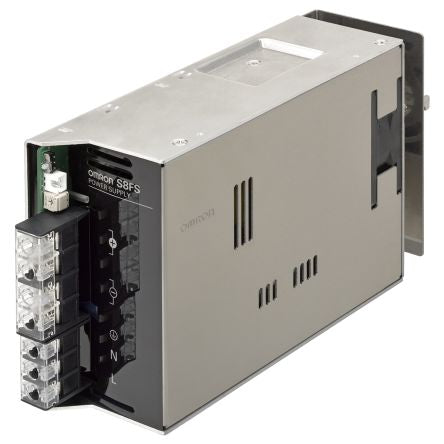

Omron, S8FS-G DIN Rail Power Supply, 48V dc Output Voltage, 7A Output Current [S8FS-G30048CD]; 166-6786
by Omron
0₫
Mã kho: 1666786
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 100 → 240V ac |
Output Voltage | 48 V dc |
Output Current | 0.291666666666667 |
Power Rating | 300W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 43mm |
Width | 220.1mm |
Mounting Type | DIN Rail Mount |
Maximum Temperature | +70°C |
Load Regulation | 0.01 |
Output Voltage Adjustment Range | -10 → +15% |
MTBF | 135000h |
Minimum Temperature | -20°C |
Depth | 110mm |
Efficiency | 0.87 |
Ripple And Noise | 330mV Pk-Pk |
Standards Met | CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, CULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1 |
Series | S8FS-G |
