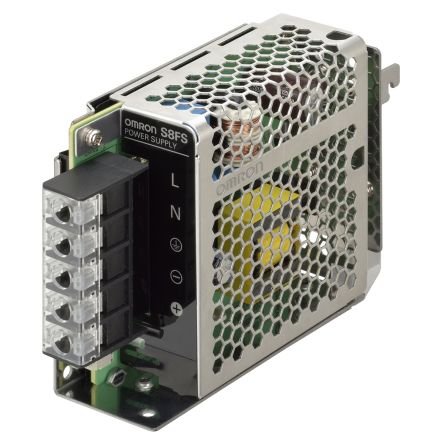

Omron, S8FS-G DIN Rail Power Supply, 12V dc Output Voltage, 1.3A Output Current [S8FS-G01512CD]; 166-6769
by Omron
0₫
Mã kho: 1666769
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 12 V dc |
| Output Current | 1.3 A |
| Power Rating | 15W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 36mm |
| Width | 137mm |
| Efficiency | 0.84 |
| Minimum Temperature | -20°C |
| Depth | 88mm |
| Mounting Type | DIN Rail Mount |
| Load Regulation | 0.01 |
| Ripple And Noise | 40mV Pk-Pk |
| Series | S8FS-G |
| Standards Met | CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, CULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1 |
| Output Voltage Adjustment Range | -10 → +15% |
| Maximum Temperature | +70°C |
| MTBF | 135000h |
