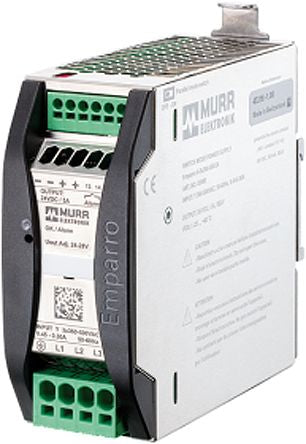

Murrelektronik Limited, EMPARRO DIN Rail Power Supply, 24V dc Output Voltage, 5A Output Current [85690]; 123-6698
0₫
Mã kho: 1236698
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 400V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 2, 3 |
| Type | Switch Mode |
| Height | 143mm |
| Width | 50mm |
| Mounting Type | DIN Rail |
| Depth | 143mm |
| Minimum Temperature | -40°C |
| Ripple And Noise | 20mV ac |
| MTBF | >1000000h |
| Output Voltage Adjustment Range | 24 → 28V |
| Special Features | Optimum Performance, Reliable, Space Saving |
| Maximum Temperature | +70°C |
| Standards Met | CULus, CULus Recognised, EN 55011 B, EN 60715, EN 60950-1, EN 61000-3-2, EN 61204-3, SEMI F47 |
| Series | EMPARRO |
