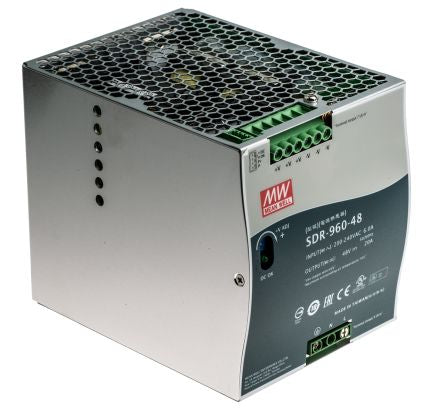

Mean Well, SDR DIN Rail Power Supply, 48V dc Output Voltage, 20A Output Current [SDR-960-48]; 122-2227
by Mean Well
0₫
Mã kho: 1222227
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 180 → 264V ac |
Output Voltage | 48 V dc |
Output Current | 20 A |
Power Rating | 960W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 125mm |
Width | 110mm |
Load Regulation | ±1% |
Output Voltage Adjustment Range | 48 → 55V |
Series | SDR |
Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
Maximum Temperature | +70°C |
Special Features | Overvoltage and Short Circuit Protection |
Depth | 150mm |
Mounting Type | DIN Rail Mount |
MTBF | 69.8kh |
Ripple And Noise | 250mV Pk-Pk |
Minimum Temperature | -30°C |
