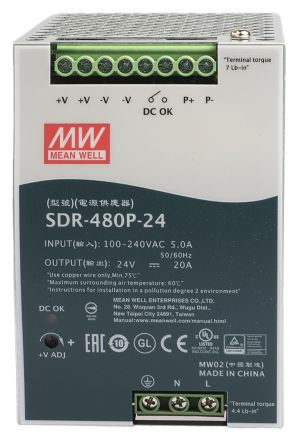

Mean Well, SDR DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 20A Output Current [SDR-480P-24]; 765-4676
by Mean Well
0₫
Mã kho: 7654676
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 88 → 264V ac |
Output Voltage | 24 V dc |
Output Current | 20 A |
Power Rating | 480W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 125mm |
Width | 85.5mm |
Mounting Type | DIN Rail Mount |
Depth | 129mm |
Minimum Temperature | -25°C |
Ripple And Noise | 100mV Pk-Pk |
MTBF | 112.9kh |
Output Voltage Adjustment Range | 24 → 28V |
Load Regulation | ±1% |
Special Features | Overvoltage and Short Circuit Protection |
Series | SDR |
Maximum Temperature | +70°C |
Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
