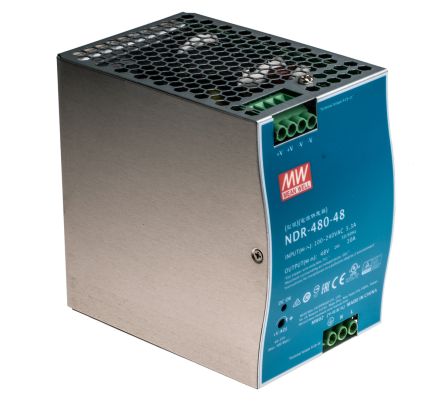

Mean Well, NDR DIN Rail Power Supply, 48V dc Output Voltage, 10A Output Current [NDR-480-48]; 122-2231
by Mean Well
0₫
Mã kho: 1222231
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 90 → 264V ac |
| Output Voltage | 48 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 125mm |
| Width | 85.5mm |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±1% |
| Output Voltage Adjustment Range | 48 → 55V |
| MTBF | 146.8kh |
| Ripple And Noise | 150mV Pk-Pk |
| Minimum Temperature | -20°C |
| Depth | 129mm |
| Mounting Type | DIN Rail Mount |
| Series | NDR |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Temperature | +70°C |
