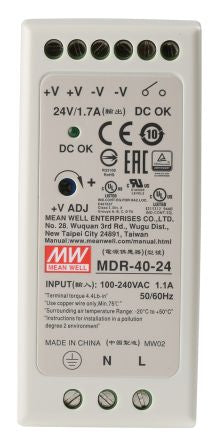

Mean Well, MDR DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 1.7A Output Current [MDR-40-24]; 428-455
by Mean Well
0₫
Mã kho: 428455
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264V ac |
Output Voltage | 24 V dc |
Output Current | 1.7 A |
Power Rating | 40W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 100mm |
Width | 40mm |
Load Regulation | ±1% |
Output Voltage Adjustment Range | 24 → 30V |
Special Features | Overvoltage and Short Circuit Protection |
Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
Mounting Type | DIN Rail Mount |
MTBF | 301.7kh |
Maximum Temperature | +70°C |
Series | MDR |
Depth | 90mm |
Minimum Temperature | -20°C |
Ripple And Noise | 150mV Pk-Pk |
Hazardous Area Certification | B, C, Class I Division 2 Group A, D Hazardous Location T4 |
