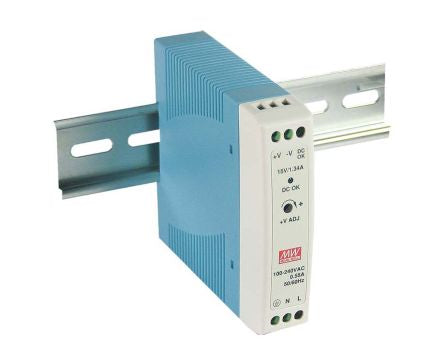

Mean Well, MDR DIN Rail Panel Mount Power Supply, 15V dc Output Voltage, 1.34A Output Current [MDR-20-15]; 428-417
by Mean Well
0₫
Mã kho: 428417
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 15 V dc |
| Output Current | 1.34 A |
| Power Rating | 20W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 100mm |
| Width | 22.5mm |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Ripple And Noise | 120mV Pk-Pk |
| Output Voltage Adjustment Range | 13.5 → 16.5V |
| Special Features | Overvoltage and Short Circuit Protection |
| MTBF | 236900h |
| Maximum Temperature | +70°C |
| Load Regulation | ±1% |
| Minimum Temperature | -20°C |
| Mounting Type | DIN Rail Mount |
| Series | MDR |
| Depth | 90mm |
