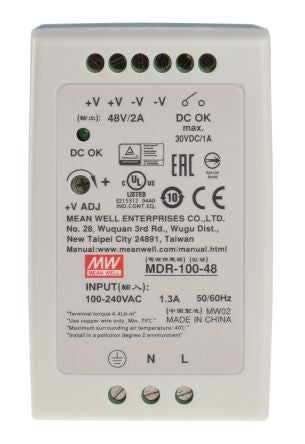

Mean Well, MDR DIN Rail Panel Mount Power Supply, 48V dc Output Voltage, 2A Output Current [MDR-100-48]; 428-411
by Mean Well
0₫
Mã kho: 428411
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264V ac |
Output Voltage | 48 V dc |
Output Current | 0.0833333333333333 |
Power Rating | 100W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 100mm |
Width | 55mm |
Minimum Temperature | -10°C |
Ripple And Noise | 200mV Pk-Pk |
MTBF | 346kh |
Mounting Type | DIN Rail Mount |
Depth | 90mm |
Load Regulation | ±1% |
Series | MDR |
Output Voltage Adjustment Range | 48 → 56V |
Special Features | Overvoltage and Short Circuit Protection |
Maximum Temperature | +60°C |
Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
