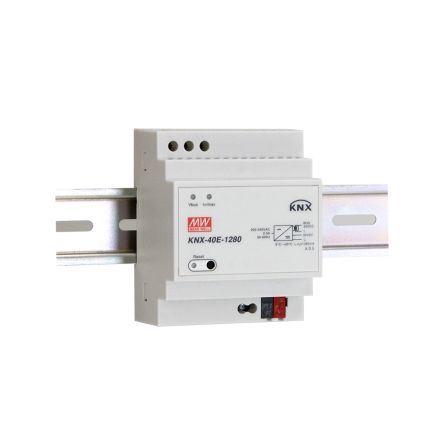

Mean Well, KNX-40E DIN Rail Power Supply, 30V dc Output Voltage, 1.28A Output Current [KNX-40E-1280D]; 183-4140
by Mean Well
0₫
Mã kho: 1834140
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 180 → 264V ac |
Output Voltage | 30 V dc |
Output Current | 1.28 A |
Power Rating | 38.4W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | DIN Rail Power Supply |
Height | 90mm |
Width | 72mm |
Efficiency | 0.86 |
Minimum Temperature | -30°C |
Depth | 57mm |
Mounting Type | DIN Rail Mount |
Maximum Temperature | +70°C |
Special Features | Compact Size with 4SU Width, Cooling by Free Air Convection, Safety Extra Low Voltage (SELV), 3 Years Warranty |
Series | KNX-40E |
Standards Met | CE Certified, DIN EN60715, EN50491-3, EN50491-5-2,-5-3, EN61000-3-2,-3-3, EN61000-4-2,3,4,5,6,8,11, EN61558-1, EN61558-2-16 |
Ripple And Noise | 100mV Pk-Pk |
MTBF | 487.4kh |
