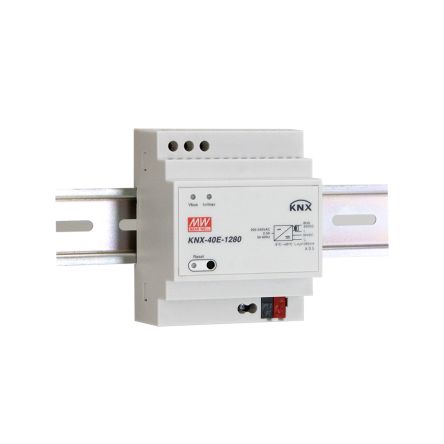

Mean Well, KNX-40E DIN Rail Power Supply, 30V dc Output Voltage, 1.28A Output Current [KNX-40E-1280]; 183-4139
by Mean Well
0₫
Mã kho: 1834139
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 180 → 264V ac |
| Output Voltage | 30 V dc |
| Output Current | 1.28 A |
| Power Rating | 38.4W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | DIN Rail Power Supply |
| Height | 90mm |
| Width | 72mm |
| Standards Met | CE Certified, DIN EN60715, EN50491-3, EN50491-5-2,-5-3, EN61000-3-2,-3-3, EN61000-4-2,3,4,5,6,8,11, EN61558-1, EN61558-2-16 |
| Maximum Temperature | +70°C |
| Minimum Temperature | -30°C |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 100mV Pk-Pk |
| Depth | 57mm |
| Efficiency | 0.86 |
| Special Features | Compact Size with 4SU Width, Cooling by Free Air Convection, Safety Extra Low Voltage (SELV), 3 Years Warranty |
| Series | KNX-40E |
| MTBF | 487.4kh |
