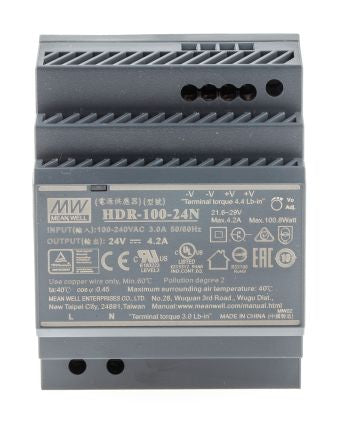

Mean Well, HDR DIN Rail Power Supply, 24V dc Output Voltage, 4.2A Output Current [HDR-100-24N]; 145-7880
by Mean Well
0₫
Mã kho: 1457880
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264 V ac, 120 → 370 V dc |
| Output Voltage | 24 V dc |
| Output Current | 4.2 A |
| Power Rating | 100.8W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 70mm |
| Maximum Temperature | +70°C |
| Special Features | Small & Compact |
| Load Regulation | ±1% |
| Output Voltage Adjustment Range | 21.6 → 29V |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Ripple And Noise | 150mV Pk-Pk |
| Minimum Temperature | -30°C |
| Depth | 54.5mm |
| Mounting Type | DIN Rail |
| Series | HDR |
| MTBF | 856.5kh |
