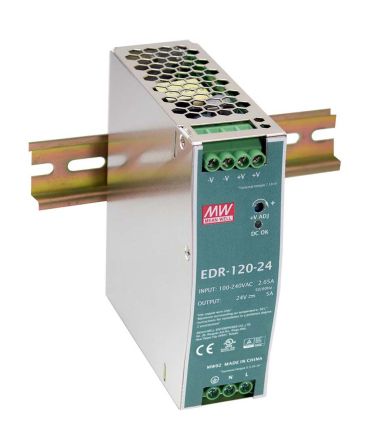

Mean Well, EDR DIN Rail Power Supply, 24V dc Output Voltage, 5A Output Current [EDR-120-24]; 122-2208
by Mean Well
0₫
Mã kho: 1222208
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 90 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 125mm |
| Width | 40mm |
| Mounting Type | DIN Rail Mount |
| Depth | 114mm |
| Minimum Temperature | -20°C |
| Ripple And Noise | 120mV Pk-Pk |
| MTBF | 474.6kh |
| Series | EDR |
| Maximum Temperature | +60°C |
| Output Voltage Adjustment Range | 24 → 28V |
| Load Regulation | ±1% |
| Special Features | Overvoltage and Short Circuit Protection |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
