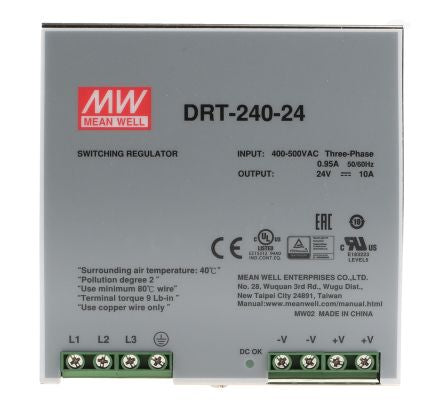

Mean Well, DRT DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 10A Output Current [DRT-240-24]; 282-603
by Mean Well
0₫
Mã kho: 282603
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 340 → 550V ac |
Output Voltage | 24 V dc |
Output Current | 0.416666666666667 |
Power Rating | 240W |
Number of Outputs | 1 |
Electrical Phase | 3 |
Type | Switch Mode |
Height | 125mm |
Width | 276mm |
Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
Depth | 100mm |
Minimum Temperature | -20°C |
Series | DRT |
Maximum Temperature | +70°C |
MTBF | 114600h |
Output Voltage Adjustment Range | 24 → 28V |
Mounting Type | DIN Rail Mount |
Ripple And Noise | 80mV Pk-Pk |
Special Features | Overvoltage and Short Circuit Protection |
Load Regulation | ±0.5% |
