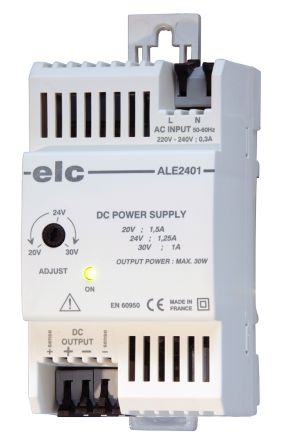

ELC DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 1.25A Output Current [ALE2401]; 703-3439
by ELC
0₫
Mã kho: 7033439
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 190 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 1.25 A |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 58mm |
| Width | 54mm |
| Load Regulation | 20mV |
| Output Voltage Adjustment Range | 20 → 30V |
| Depth | 95mm |
| Mounting Type | DIN Rail Mount, Panel Mount |
| Maximum Temperature | +70°C |
| Ripple And Noise | 3mV |
| Minimum Temperature | -25°C |
