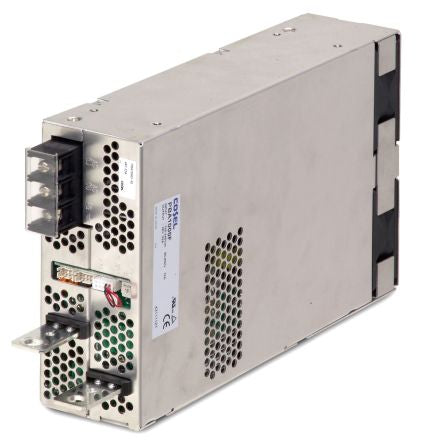

Cosel, PBA1000F Switching Power Supply, 24V dc Output Voltage, 44A Output Current [PBA1000F-24]; 101-784
by Cosel
0₫
Mã kho: 101784
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 85 → 264 V ac, 120 → 350 V dc |
| Output Voltage | 24 V dc |
| Output Current | 44 A |
| Power Rating | 1kW |
| Number of Outputs | 1 |
| Width | 61mm |
| Minimum Temperature | -20°C |
| Depth | 150mm |
| Mounting Type | Chassis Mount |
| Load Regulation | 150mV |
| Maximum Temperature | +71°C |
| Efficiency | 84.0 → 86.0% |
| Series | PBA1000F |
| Ripple And Noise | 150 mV Pk-Pk, 180 mV Pk-Pk |
