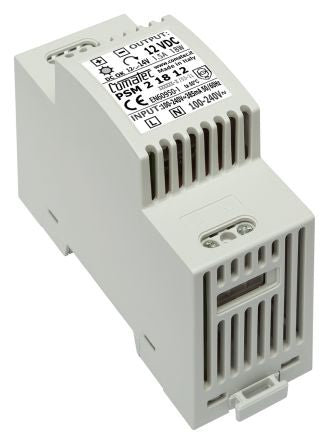

Comatec, PSM2 DIN Rail Power Supply, 12V dc Output Voltage, 1.5A Output Current [PSM2.18.12]; 891-9255
by Comatec
0₫
Mã kho: 8919255
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 90 → 260V ac |
Output Voltage | 12 V dc |
Output Current | 1.5 A |
Power Rating | 18W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Height | 93mm |
Width | 93mm |
Minimum Temperature | -10°C |
Output Voltage Adjustment Range | ±3% |
Ripple And Noise | 20mV Pk-Pk |
Mounting Type | DIN Rail Mount |
Depth | 68mm |
MTBF | 100000h |
Series | PSM2 |
Maximum Temperature | +50°C |
Standards Met | CE 2006/95/ECC-89/336, EN 55022-B, EN 60950, EN 61000-4, UL 508 |
Special Features | The Power Supplies of the "PSM Range are made using The Latest Switching Technology |
