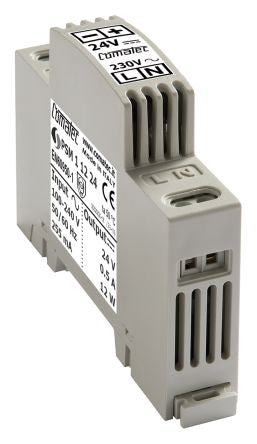

Comatec, PSM1 DIN Rail Power Supply, 24V dc Output Voltage, 500mA Output Current [PSM1.12.24]; 891-9249
by Comatec
0₫
Mã kho: 8919249
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac |
AC or DC Output Voltage | Dc |
Input Voltage | 90 → 260V ac |
Output Voltage | 24 V dc |
Output Current | 500 mA |
Power Rating | 12W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Height | 93mm |
Ripple And Noise | 60mV Pk-Pk |
Minimum Temperature | -10°C |
Depth | 68mm |
Mounting Type | DIN Rail Mount |
Series | PSM1 |
Standards Met | CE 2006/95/ECC-89/336, EN 55022-B, EN 60950, EN 61000-4, UL 508 |
Maximum Temperature | +50°C |
Special Features | The Power Supplies of the "PSM Range are made using The Latest Switching Technology |
Output Voltage Adjustment Range | ±3% |
MTBF | 100000h |
