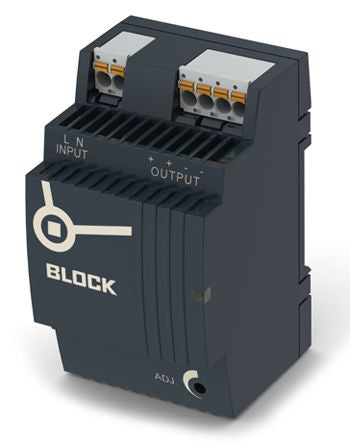

Block, PEL Neo DIN Rail Power Supply, 24V dc Output Voltage, 2.5A Output Current [PEL-0124-025-0]; 123-4314
by Block
0₫
Mã kho: 1234314
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264 V ac, 120 → 373 V dc |
Output Voltage | 24 V dc |
Output Current | 2.5 A |
Power Rating | 60W |
Number of Outputs | 1 |
Height | 89mm |
Width | 59mm |
Minimum Temperature | -25°C |
Depth | 59mm |
Mounting Type | DIN Rail Mount |
Efficiency | 0.88 |
Ripple And Noise | 100mV |
Series | PEL Neo |
Maximum Temperature | +55°C |
Output Voltage Adjustment Range | 22.8 to 26.4V |
Special Features | DC OK Signalling via LEDs, Panel Installation on Mounting Rails, Push-In Terminals, Stabilised & Adjustable Output Voltage |
