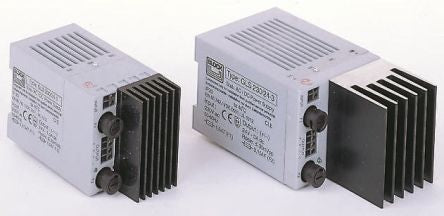

Block, GLS DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 2A Output Current [GLS230/24-2]; 310-1106
by Block
0₫
Mã kho: 3101106
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.0833333333333333 |
| Power Rating | 48W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Linear |
| Height | 138mm |
| Width | 90mm |
| Output Voltage Adjustment Range | 24.0 to 24.0V |
| Series | GLS |
| Mounting Type | DIN Rail Mount |
| Efficiency | 0.52 |
| Load Regulation | ±1% |
| Depth | 75mm |
| Maximum Temperature | +60°C |
| Ripple And Noise | 30mV Pk-Pk |
