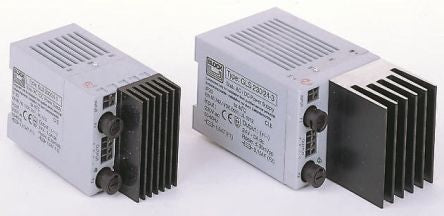

Block, GLS DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 500mA Output Current [GLS230/24-0.5]; 310-1083
by Block
0₫
Mã kho: 3101083
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 500 mA |
| Power Rating | 12W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Linear |
| Height | 135mm |
| Width | 62.5mm |
| Maximum Temperature | +60°C |
| Series | GLS |
| Output Voltage Adjustment Range | 24.0 to 24.0V |
| Ripple And Noise | 30mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
| Load Regulation | ±1% |
| Depth | 75mm |
| Efficiency | 0.5 |
