![ABB CP-C.1 24/5.0 1769040](http://nguyenxuong.com/cdn/shop/products/Y1769040-01_285x444.jpg?v=1594239496)

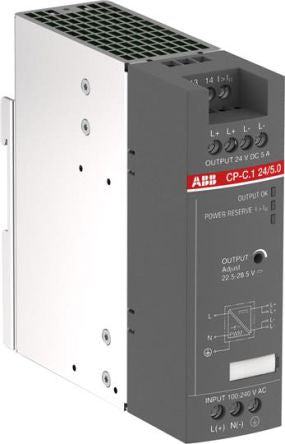

ABB, CP-C.1 DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 5A Output Current [CP-C.1 24/5.0]; 176-9040
by ABB
0₫
Mã kho: 1769040
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264V ac |
Output Voltage | 24 V dc |
Output Current | 0.208333333333333 |
Power Rating | 120W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switched Mode Power Supply |
Height | 129.4mm |
Width | 40mm |
Mounting Type | DIN Rail Mount |
Depth | 136mm |
Minimum Temperature | -40°C |
Hazardous Area Certification | ATEX |
Series | CP-C.1 |
Standards Met | CAN/CSA C22.2 No.107.1, EN 50581, IEC/EN 60079-0, IEC/EN 60079-15, IEC/EN 60079-7, IEC/EN 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61204, UL 508 |
Output Voltage Adjustment Range | 22.5 to 28.5V |
Efficiency | 0.93 |
Ripple And Noise | 120mV Pk-Pk |
Maximum Temperature | +85°C |
