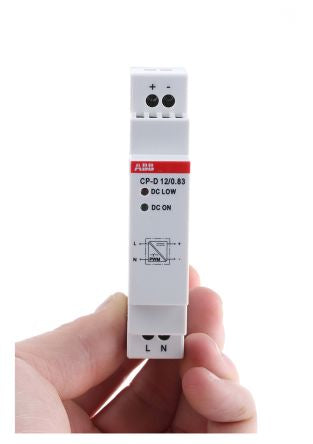

ABB, CP-D DIN Rail Panel Mount Power Supply, 12V dc Output Voltage, 800mA Output Current [1SVR427041R1000 - CP-D 12/0.83,1SVR4]; 486-748
by ABB
0₫
Mã kho: 486748
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 90 → 264V ac |
| Output Voltage | 12 V dc |
| Output Current | 800 mA |
| Power Rating | 10W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 91mm |
| Width | 18mm |
| Output Voltage Adjustment Range | 12.0 to 12.0V |
| Mounting Type | DIN Rail Mount |
| Load Regulation | ±1% |
| Efficiency | 0.78 |
| Minimum Temperature | -25°C |
| Ripple And Noise | 50mV |
| Depth | 57.5mm |
| Series | CP-D |
| Maximum Temperature | +70°C |
