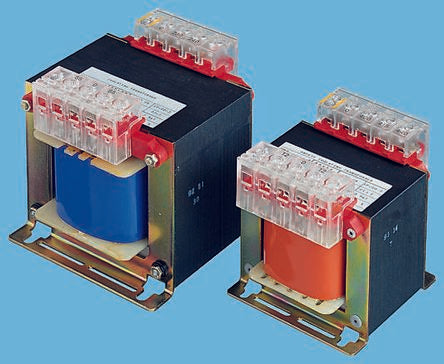

Legrand 630VA Control Panel Transformers, 230V ac, 400V ac Primary 2 x, 12V ac Secondary [0 428 47]; 383-342
by Legrand
0₫
Mã kho: 383342
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Voltage Rating | 230V ac, 400V ac |
| Secondary Voltage Rating | 12V ac |
| Power Rating | 630VA |
| Mounting Type | DIN Rail |
| Number of Outputs | 2 |
| Length | 126mm |
| Width | 141mm |
| Depth | 126mm |
| Dimensions | 126 x 141 x 126mm |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Maximum Temperature | +35°C |
| Weight | 8kg |
