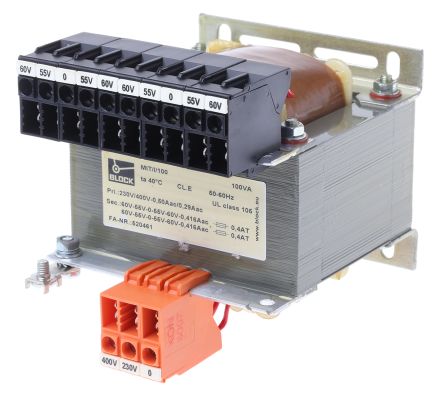

Block 100VA DIN Rail Transformer, 230V ac, 400V ac Primary 2 x, ±110V ac, ±120V ac, ±55V ac, ±60V ac Secondary [MIT/I/100]; 310-1702
by Block
0₫
Mã kho: 3101702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Voltage Rating | 230V ac, 400V ac |
| Secondary Voltage Rating | ±110V ac, ±120V ac, ±55V ac, ±60V ac |
| Power Rating | 100VA |
| Mounting Type | DIN Rail |
| Number of Outputs | 2 |
| Length | 96mm |
| Width | 106.5mm |
| Depth | 84mm |
| Dimensions | 96 x 106.5 x 84mm |
| Maximum Temperature | +40°C |
| Weight | 2.2kg |
